B-7232-05-ESB48

Name: 3/8" x 35' Open Epoxy Coated Reel, MV-2522-24, 48" Flexible Water Hose, SS Swing Bracket
Brand: T&S Brass
Price: 2687.00 USD
Availability: InStock

3/8" x 35' Open Epoxy Coated Reel, MV-2522-24, 48" Flexible Water Hose, SS Swing Bracket

share this page Where to Buy

List Price $2,687.00

Open epoxy coated steel hose reel, front trigger gun with swivel, 3/8" x 35' heavy-duty non-marking hose, ratcheting system, multi-fit bracket, adjustable hose bumper, 3/8" NPT female inlet, 48" flexible water hose connector and universal stainless steel wall mount swing bracket with reel-to-bracket mounting hardware.

Pressure Max: 125 psi (8.62 bar)
Pressure Min: 20 psi (1.38 bar)
Temperature Max: 200 F (93.33℃)
Temperature Min: 40 F (4.44℃)
Water Gun Flow: Water Gun Flow: 4.1 GPM (15.52 L/min)

Connector Hose Thread: 3/8in
Connector Length: 48in
Connector Type: Water
Enclosed/Open: Open
Feature: EasyInstall
Feature: Swivel Bracket - Universal Design
Finish: Coated Steel
Hose Length: 35ft (10.7 m)
Hose Size: 3/8 in (9.5 mm)
Material: Brass Construction
Pressure Max: 125 psi (8.62 bar)
Pressure Min: 20 psi (1.38 bar)
Spray Valve: Front Trigger Water Gun
Temperature Max: 200 F (93.33℃)
Temperature Min: 40 F (4.44℃)
Water Gun Flow: Water Gun Flow: 4.1 GPM (15.52 L/min)

100 degree universal stainless steel wall mount swing bracket designed for one person installation with reel-to-bracket mounting hardware
3/8" NPT female inlet
3/8" x 35' heavy-duty non-marking hose rated to 300 PSI

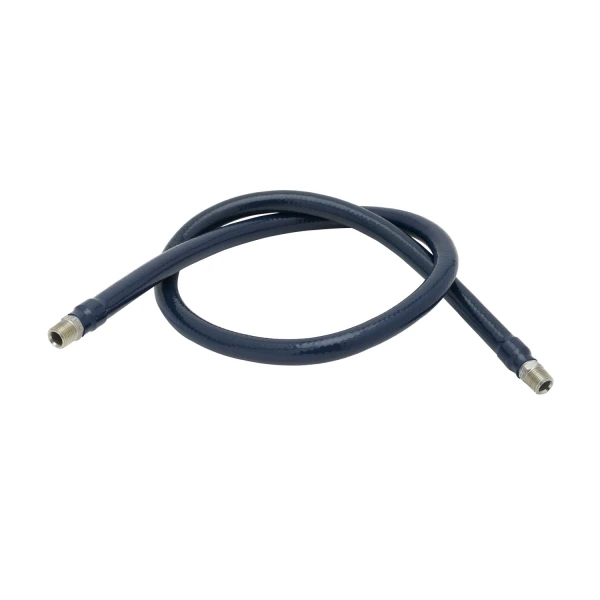

48" flexible water hose connector
Adjustable hose bumper
Material: Epoxy coated steel open reel and wall bracket, polished chrome plated spray valve, stainless steel swing bracket
Multi-fit bracket for wall, ceiling or under counter mounting
Open epoxy coated steel hose reel
Ratcheting system holds the length of hose until a slight tug to retract automatically
Stainless steel front trigger water gun and swivel with rubber cover and 5/16" orifice

Box Dimensions: 19.50 x 19.00 x 8.50
Weight: 66.76 lbs (30.28 kg)
UPC: 671262813426

California Prop #65 Warning

California Prop #65 Warning

WARNING

California Proposition 65

WARNING: This product can expose you to chemicals including Lead, Chromium (hexavalent compounds) and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm.

For more information, please go to www.P65Warnings.ca.gov.

Related Literature

Resources

Spec Drawings/Parts Explosion

Submittal

Warranty: Two Year (Limited)

Installation Instructions

T&S Hose Reel

Replacement Parts Parts Explosion

MV-2522-24

Water Gun, Front Trigger, 5/16" Orifice, w/out Coupling,...

B-7232-05-ESB48

3/8" x 35' Open Epoxy Coated Reel, MV-2522-24, 48" Flexible Water Hose, SS Swing Bracket

List Price $2,687.00

Pressure Max: 125 psi (8.62 bar)

Pressure Min: 20 psi (1.38 bar)

Temperature Max: 200 F (93.33℃)

Temperature Min: 40 F (4.44℃)

Water Gun Flow: Water Gun Flow: 4.1 GPM (15.52 L/min)

Connector Hose Thread: 3/8in

Connector Length: 48in

Connector Type: Water

Enclosed/Open: Open

Feature: EasyInstall

Feature: Swivel Bracket - Universal Design

Finish: Coated Steel

Hose Length: 35ft (10.7 m)

Hose Size: 3/8 in (9.5 mm)

Material: Brass Construction

Pressure Max: 125 psi (8.62 bar)

Pressure Min: 20 psi (1.38 bar)

Spray Valve: Front Trigger Water Gun

Temperature Max: 200 F (93.33℃)

Temperature Min: 40 F (4.44℃)

Water Gun Flow: Water Gun Flow: 4.1 GPM (15.52 L/min)
