B-0123-BC

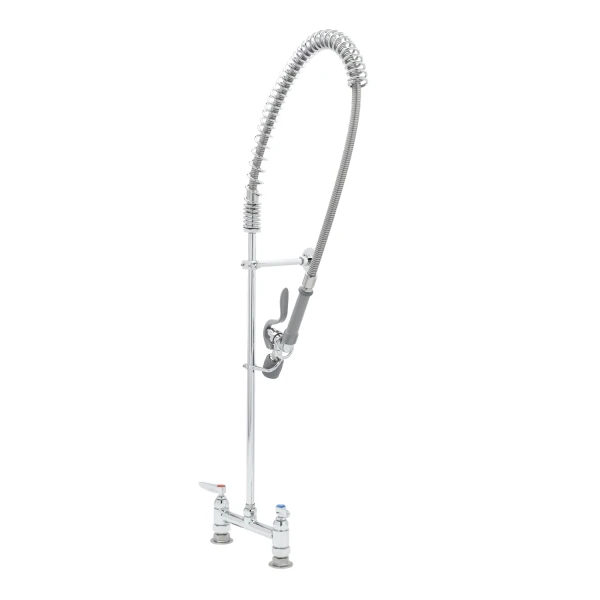

Name: Pre-Rinse Unit: 8" Deck Mount, Low-Flow Spray Valve, Wall Bracket, 44" SS Flex Hose
Brand: T&S Brass
Price: 826.00 USD
Availability: InStock

Pre-Rinse Unit: 8" Deck Mount, Low-Flow Spray Valve, Wall Bracket, 44" SS Flex Hose

share this page Where to Buy

List Price $826.00

8" deck mount mixing faucet with polished chrome plated brass body, 24" riser, 44" flexible stainless steel hose, heat resistant handle, 0.65 GPM low flow spray valve, compression cartridges with spring checks, lever handles, 1/2" NPT female inlets, spray valve holder and overhead spring and 6" adjustable wall bracket. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. 2019 DOE PRSV - Class I compliant.

Pressure Max: 125 psi (8.62 bar)
Pressure Min: 20 psi (1.38 bar)
Spray Valve Flow: 0.65 GPM (2.46 L/min)
Temperature Max: 140 F (60℃)
Temperature Min: 40 F (4.44℃)

B-0425-KIT

Install Kit
List Price: $44.50

See full details

Body: 8 in Centers (203.2 mm)
Body Mount: Deck
Cartridge-Spindle: 1/4 Turn Compression
Feature: 6 in Wall Bracket (152.4 mm)
Feature: Spring Check
Handle: Lever
Inlet: 1/2 in NPT Female
Inlet: Adjustable Centers
Material: Brass Construction
Pressure Max: 125 psi (8.62 bar)
Pressure Min: 20 psi (1.38 bar)
Spray Valve: B-0107-C (0.65 GPM) (2.46 L/min)
Spray Valve Flow: 0.65 GPM (2.46 L/min)
Temperature Max: 140 F (60℃)
Temperature Min: 40 F (4.44℃)

0.65 GPM low flow spray valve
1/2" NPT male inlets with 2" adjustable flanges
44" flexible stainless steel hose w/ heat resistant gray handle and hold down ring
6" wall bracket
8" deck mount polished chrome plated brass body
Adjustable centers from 7 3/4" to 8 1/4"
EasyInstall riser for quick installation
Lever handles w/ color coded indexes
Material: Polished chrome plated brass body, riser & spray valve body, stainless steel hose, chrome plated metal handles and wall bracket
Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water

Certifications

ASME A112.18.1 / CSA B125.1
Buy American Act (BAA)
California Energy Commission CEC
NSF/ANSI 372 (Lead Content)
NSF/ANSI/CAN 61 Q≤1

Box Dimensions: 3.88 x 12.00 x 27.50
Weight: 11.80 lbs (5.35 kg)
UPC: 671262644747

Patent: 6820291, ZL200410048757 & EP1489237
California Prop #65 Warning

California Prop #65 Warning

WARNING

California Proposition 65

WARNING: This product can expose you to chemicals including Lead, Chromium (hexavalent compounds) and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm.

For more information, please go to www.P65Warnings.ca.gov.
Patent: EasyInstall

Related Literature

Resources

Spec Drawings/Parts Explosion

Submittal

Warranty: Three Year (Limited)

Installation Instructions

EasyInstall Pre-Rinse Unit

Accessories

018200-40

Live Swivel for Pre-Rinse Spray Valves (Chrome-Plated Brass)

B-0123-BC

Pre-Rinse Unit: 8" Deck Mount, Low-Flow Spray Valve, Wall Bracket, 44" SS Flex Hose

List Price $826.00

Pressure Max: 125 psi (8.62 bar)

Pressure Min: 20 psi (1.38 bar)

Spray Valve Flow: 0.65 GPM (2.46 L/min)

Temperature Max: 140 F (60℃)

Temperature Min: 40 F (4.44℃)

B-0425-KIT

Body: 8 in Centers (203.2 mm)

Body Mount: Deck

Cartridge-Spindle: 1/4 Turn Compression

Feature: 6 in Wall Bracket (152.4 mm)

Feature: Spring Check

Handle: Lever

Inlet: 1/2 in NPT Female

Inlet: Adjustable Centers

Material: Brass Construction

Pressure Max: 125 psi (8.62 bar)

Pressure Min: 20 psi (1.38 bar)

Spray Valve: B-0107-C (0.65 GPM) (2.46 L/min)

Spray Valve Flow: 0.65 GPM (2.46 L/min)

Temperature Max: 140 F (60℃)

Temperature Min: 40 F (4.44℃)

Certifications
