B-1146-04-WS

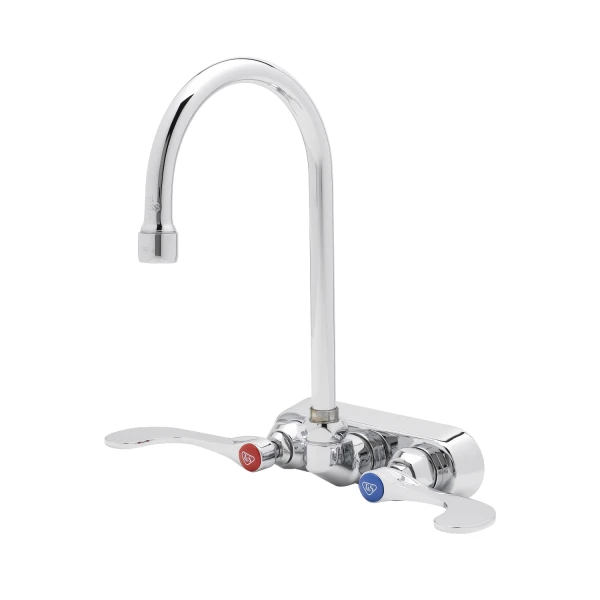

Name: 4" Workboard Faucet, Wall Mount, Swivel Gooseneck, 1.5gpm Aerator, 4" Wrist-Action Handles
Brand: T&S Brass
Price: 367.50 USD
Availability: InStock

4" Workboard Faucet, Wall Mount, Swivel Gooseneck, 1.5gpm Aerator, 4" Wrist-Action Handles

share this page Where to Buy

List Price $367.50

4" wall mount mixing faucet with chrome plated brass body, 5 3/4" swivel gooseneck with 1.5 GPM aerator, compression cartridges with spring checks, wrist action handles, 1/2" NPT male inlets and chrome plated escutcheon. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372 and EPA WaterSense. Meets ADA ANSI/ICC A117.1 requirements.

Nozzle Flow: 1.5 GPM (5.68 L/min)
Pressure Max: 125 psi (8.62 bar)
Pressure Min: 20 psi (1.38 bar)
Temperature Max: 140 F (60℃)
Temperature Min: 40 F (4.44℃)

B-1105-KIT

Install Kit
List Price: $59.40

See full details

Body: 4 in Centers (101.6 mm)
Body: Workboard
Body Mount: Wall
Cartridge-Spindle: 1/4 Turn Compression
Handle: 4 in Wrist (101.6 mm)
Nozzle: 6 in (152.4 mm)
Nozzle: Gooseneck
Nozzle: Swivel
Nozzle Flow: 1.5 GPM (5.68 L/min)
Nozzle Outlet Type: Aerator
Pressure Max: 125 psi (8.62 bar)
Pressure Min: 20 psi (1.38 bar)
Temperature Max: 140 F (60℃)
Temperature Min: 40 F (4.44℃)

1.5 GPM aerator, Series 1 (B-0199-01-WS)
1/2" NPT male inlets
4" wall mount mixing faucet w/ chrome plated brass body
4" wrist action handles w/ color coded indexes
5 3/4" swivel gooseneck
Chrome plated escutcheon
Material: Chrome plated brass body & tubular spout and chrome plated metal handles & escutcheon
Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
Tailpieces and nuts for 1/4" NPT male connections

Certifications

ASME A112.18.1 / CSA B125.1
Buy American Act (BAA)
California Energy Commission CEC
EPA WaterSense
NSF/ANSI 372 (Lead Content)
NSF/ANSI/CAN 61 Q≤1

Compliances

ANSI A117.1 (ADA)

Box Dimensions: 3.75 x 10.25 x 15.44
Weight: 4.75 lbs (2.15 kg)
UPC: 671262771511

California Prop #65 Warning

California Prop #65 Warning

WARNING

California Proposition 65

WARNING: This product can expose you to chemicals including Lead, Chromium (hexavalent compounds) and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm.

For more information, please go to www.P65Warnings.ca.gov.

Related Literature

Resources

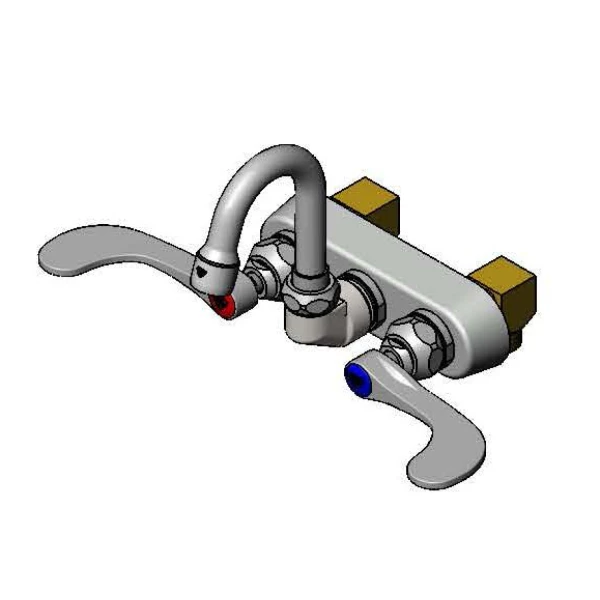

Spec Drawings/Parts Explosion

Submittal

Warranty: One Year (Limited)

Installation Instructions

Workboard Faucet

Replacement Parts Parts Explosion
