B-2866-05-LF12

Name: Concealed Widespread Faucet, 8" Centers, 6" Swivel Gooseneck, 1.2 GPM Laminar Flow Device Quarter-Turn Cartridges
Brand: T&S Brass
Price: 454.00 USD
Availability: InStock

Concealed Widespread Faucet, 8" Centers, 6" Swivel Gooseneck, 1.2 GPM Laminar Flow Device Quarter-Turn Cartridges

share this page Where to Buy

List Price $454.00

8" concealed deck mount mixing faucet, 5 3/4" swivel/rigid gooseneck with 1.2 GPM laminar flow device, compression cartridges with spring checks, 4" wrist action handles, chrome plated escutcheons and 1/2" NPT male inlets with coupling nuts. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372 and EPA WaterSense. Meets ADA ANSI/ICC A117.1 requirements.

Nozzle Flow: 1.2 GPM (4.54 L/min)
Pressure Max: 125 psi (8.62 bar)
Pressure Min: 20 psi (1.38 bar)
Temperature Max: 140 F (60℃)
Temperature Min: 40 F (4.44℃)

Body: 8 in Centers (203.2 mm)
Body: Concealed
Body Mount: Deck
Cartridge-Spindle: 1/4 Turn Compression
Feature: EasyInstall
Feature: Spring Check
Handle: 4 in Wrist (101.6 mm)
Material: Brass Construction
Nozzle: 6 in (152.4 mm)
Nozzle: Gooseneck
Nozzle: Swivel
Nozzle Flow: 1.2 GPM (4.54 L/min)
Nozzle Outlet Type: Laminar Flow Device
Pressure Max: 125 psi (8.62 bar)
Pressure Min: 20 psi (1.38 bar)
Temperature Max: 140 F (60℃)
Temperature Min: 40 F (4.44℃)

1.2 GPM laminar flow device, Series 1 (B-0199-01-LF12)
1/2" NPT male inlets w/ coupling nuts
4" wrist action handles w/ color coded indexes

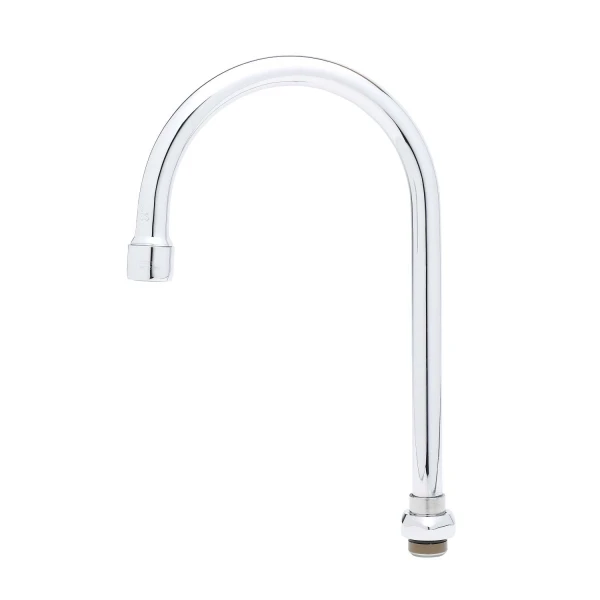

5 3/4" swivel/rigid gooseneck
8" EasyInstall concealed deck mount faucet w/ forged brass body
Lock washer provided for rigid application
Material: Forged brass body, polished chrome plated brass tubular spout and chrome plated metal handles & escutcheons
Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water

Certifications

ASME A112.18.1 / CSA B125.1
Buy American Act (BAA)
California Energy Commission CEC
EPA WaterSense
NSF/ANSI 372 (Lead Content)
NSF/ANSI/CAN 61 Q≤1

Compliances

ANSI A117.1 (ADA)

Box Dimensions: 3.50 x 8.50 x 13.25
Weight: 6.60 lbs (2.99 kg)
UPC: 671262796323

California Prop #65 Warning

California Prop #65 Warning

WARNING

California Proposition 65

WARNING: This product can expose you to chemicals including Lead, Chromium (hexavalent compounds) and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm.

For more information, please go to www.P65Warnings.ca.gov.
