B-2266

Name: Concealed Mixing Faucet, 3" Center, Black 4-Arm Lab Handles, Less Escutcheon 3/8" NPT Female Inlets/Outlet
Brand: T&S Brass
Price: 289.50 USD
Availability: InStock

Concealed Mixing Faucet, 3" Center, Black 4-Arm Lab Handles, Less Escutcheon 3/8" NPT Female Inlets/Outlet

share this page

3" concealed mixing faucet, compression cartridges with spring checks, 4-arm polypropylene handles and 3/8" NPT female inlets and outlet. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.

Nozzle Flow: 15.4 GPM (58.29 L/min)
Pressure Max: 125 psi (8.62 bar)
Pressure Min: 20 psi (1.38 bar)
Temperature Max: 140 F (60℃)
Temperature Min: 40 F (4.44℃)

Attributes

Body: 3 in Centers (76.2 mm)
Body: Concealed
Body Mount: Wall
Cartridge-Spindle: 1/4 Turn Compression
Feature: Spring Check
Handle: 4-Arm (Cross)
Material: Brass Construction
Nozzle Flow: 15.4 GPM (58.29 L/min)
Pressure Max: 125 psi (8.62 bar)
Pressure Min: 20 psi (1.38 bar)
Temperature Max: 140 F (60℃)
Temperature Min: 40 F (4.44℃)

Features & Benefits

3" concealed mixing faucet
3/8" NPT female inlets
3/8" NPT female outlet
Black polypropylene 4-arm handles w/ color coded indexes
Material: Brass body and black polypropylene handles

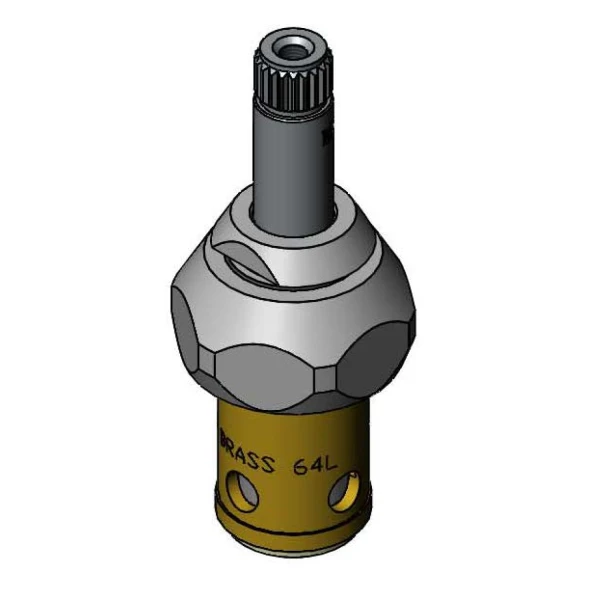

Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
